Converts HDMI to SDI. This converter can embed external sounds into SDI and extract audio signals sent in HDMI. Has internal frame buffer, supports frame rate conversion and external synchronization. Fully supports long-distance transmission which is great feature of SDI.
AV-5S-HS Main Specifications
[ Input Connectors ]
HDMI
| Connector | Type A (19 pins) x 1 |
|---|---|
| Signal Standards | HDMI1.4b |
| Video Format | 2048x1080 / 60p / 59.94p / 50p / 48p / 47.95p / 30p / 29.97p / 25p / 24p / 23.98p (SMPTE ST2048 Timings) 1920x1080 / 60p / 59.94p / 50p / 60i / 59.94i / 50i / 30p / 29.97p / 25p / 24p / 23.98p, 1280x720 / 60p / 59.94p / 50p, 720x480 / 59.94p, 720x576 / 50p, 720(1440)x480 / 59.94i, 720(1440)x576 / 50i (Conforms to CEA-861-F) |
| Color Format | 10/12 bits YCC4:2:2, 8 bits RGB4:4:4, 8 bits YCC4:4:4 (Valid bits are 10 bits) |
| Audio Format | Linear PCM, 16--24 bits, 32--48 kHz, 2--8 ch |
Analog Audio
| Connector | 1/4" TRS phone type (balanced) x 1 pair (L/R) |
|---|---|
| Input Level | +4 dBu |
| Maximum Input Level | +24 dBu |
| Impedance | 22 k / 600 ohms selectable |
Digital Audio
| Connector | 1/4" TRS phone type (balanced) x 1 (Combined use with Analog Audio L ch Connector) |
|---|---|
| Signal Format | AES3, 16--24 bits, 32--48 kHz, 2 ch |
| Impedance | 110 ohms |
REF IN
| Connector | BNC type x 1 |
|---|---|
| Signal Standards | B.B. (SMPTE ST318), Bi-Level (ITU-R BT.1358-1), HD Tri-Level (SMPTE ST274, ST296) |
| Signal Format | 1920x1080 / 60p / 59.94p / 50p / 30p / 29.97p / 25p / 24p / 23.98p / 60i / 59.94i / 50i / 24PsF / 23.98PsF (Conforms to SMPTE ST274) 1280x720 / 60p / 59.94p / 50p (Conforms to SMPTE ST296) 720x480 / 59.94p, 720x576 / 50p (Conforms to ITU-R BT.1358-1) 720x480 / 59.94i, 720x576 / 50i (Conforms to SMPTE ST318) |
[ Output Connectors ]
SDI
| Connector | BNC type x 2 |
|---|---|
| Signal Standards | SMPTE ST424 (SMPTE ST425-AB), SMPTE ST292, SMPTE ST259-C |
| Video Format | 2048x1080 / 60p / 59.94p / 50p / 48p / 47.95p / 30PsF / 29.97PsF / 25PsF / 24PsF / 23.98PsF (Conforms to SMPTE ST2048) 1920x1080 / 60p / 59.94p / 50p / 60i / 59.94i / 50i / 30PsF / 29.97PsF / 25PsF / 24PsF / 23.98PsF (Conforms to SMPTE ST274) 1280x720 / 60p / 59.94p / 50p (Conforms to SMPTE ST296) 720x487 / 59.94i, 720x576 / 50i (Conforms to ITU-R BT.601-5) |
| Color Format | 10 bits YCC4:2:2, 12 bits RGB4:4:4, 12 bits YCC4:4:4 (Valid bits are 10 bits) |
| Audio Format | Linear PCM, 24/20 bits, 48 kHz, 8 ch (Conforms to SMPTE ST299, ST272-C) |
HDMI
| Connector | Type A (19 pins) x 1 |
|---|---|
| Signal Standards | HDMI1.4b |
| Video Format | 2048x1080 / 60p / 59.94p / 50p / 48p / 47.95p / 30p / 29.97p / 25p / 24p / 23.98p (SMPTE ST2048 Timings) 1920x1080 / 60p / 59.94p / 50p / 60i / 59.94i / 50i / 30p / 29.97p / 25p / 24p / 23.98p, 1280x720 / 60p / 59.94p / 50p, 720x480 / 59.94p, 720x576 / 50p, 720(1440)x480 / 59.94i, 720(1440)x576 / 50i (Conforms to CEA-861-F) |
| Color Format | 10 bits YCC4:2:2, 8 bits RGB4:4:4, 8 bits YCC4:4:4 |
| Audio Format | Linear PCM, 24 bits, 48 kHz, 2--8 ch |
Analog Audio
| Connector | 1/4" TRS phone type (balanced) x 1 pair (L/R) |
|---|---|
| Output Level | +4 dBu |
| Maximum Output Level | +24 dBu |
| Impedance | 600 ohms |
| Minimum Load Impedance | 20k ohms |
Digital Audio
| Connector | 1/4" TRS phone type (balanced) x 1 (Combined use with Analog Audio L ch Connector) |
|---|---|
| Signal Format | AES3, 24 bits, 48 kHz, 2 ch |
| Impedance | 110 ohms |
[ Processing ]
| Audio Embed | 2ch |
|---|---|
| Audio De-embed | 2ch |
| Frame Synchronizer | Off/On (Available via Remote Control Software) |
| Phase Adjust | H=-0.5H～+0.5H, V=-0.5frame～+0.5frame |
| Frame Buffer | Off/On (Available via Remote Control Software) |
| Minimum Delay | See the instruction manual |
| Frame Rate Convert | Frame Skip/Repeat Type |
| Glitch Absorb | with Audio Soft Mute |
| Audio Delay | 0--100msec (Available via Remote Control Software) |
| Color Format Convert | Available via Remote Control Software |
[ Others ]
| USB | Micro USB Type B (Hi-Speed USB) x 1 |
|---|---|
| Power Supply | DC 12 V (AC Adaptor) |
| Power Consumption | 12 W |
| Dimensions | 110 (W) ×136 (D) ×42 (H) mm 4-11/32 (W) x 5-23/64 (D) x 1-21/32 (H) inches |
| Weight | 450 g (without AC Adaptor) 1 lb |
| Operation Temperature | +0--+40 degrees Celsius +41--+104 degrees Fahrenheit |
| Accessories | AC adaptor Startup Guide |
0 dBu = 0.775 Vrms

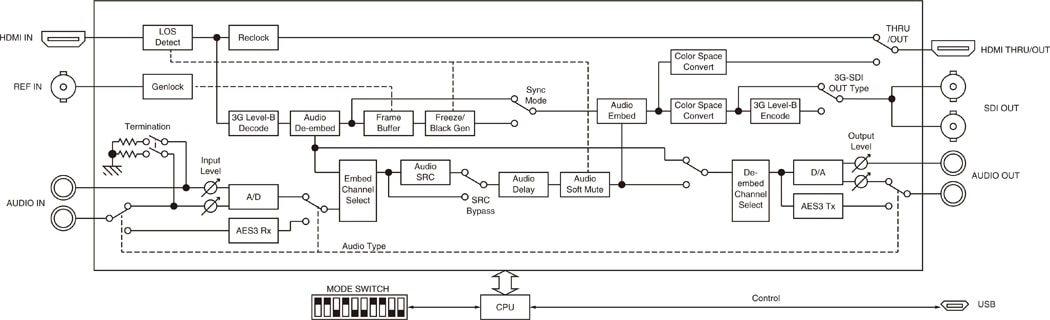

Block Diagram

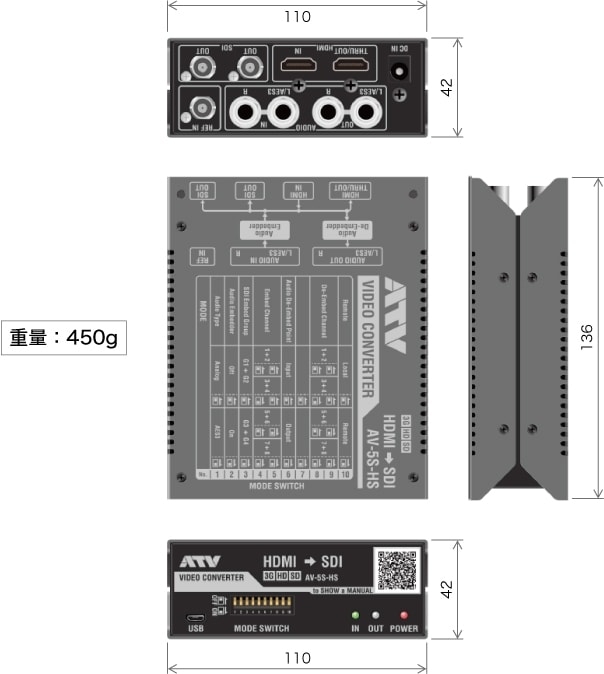

Size
The specifications and/or appearance of this unit are subject to change without prior notice.
